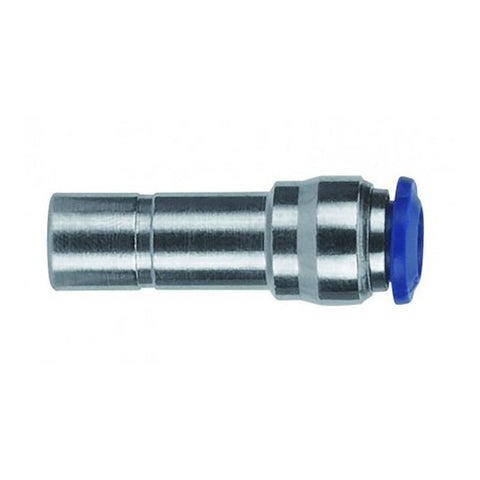

Push-to-Connect Tube x Stem Fitting: Tube Reducer, 5/32" OD
$4.93
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 82916768
Brand: Aignep USA
Model #: 88700-04-53
Product Specifications
| Fitting Type | Tube Reducer |
| Connection Type | Tube x Stem |
| Material | Nickel-Plated Brass |
| Color | Silver |
| Tube Outside Diameter | 5/32 |
| Standards | PED 2014/68/UE; 1907/2006 REACH; 2011/65/CE RoHS; ISO 14743:2004 |
| Minimum Work Temperature (F) | 0 |
| Stem Outside Diameter (Inch) | 1/4 |
| For Use With | General Purpose |
| O Ring Material | Buna-N |
| Maximum Work Temperature (Deg F - 3 Decimals) | 160 |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Italy |
