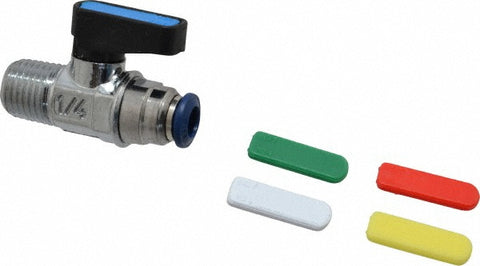

Standard Manual Ball Valve: 1/4" Pipe, Full Port
$18.68
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 71092431
Brand: Aignep USA
Model #: 86330-04-04
Product Specifications
| Valve Type | Ball; Standard |
| Pipe Size | 1/4 |
| Body Material | Brass |
| End Connection | MNPT x Push-To-Connect |
| Port Type | Full |
| Handle Type | Composite |
| Maximum Working Pressure (PSI - 3 Decimals) | 250 |
| Thread Size | 1/4 in |
| Trim Material | Brass |
| Seal Material | Polytetrafluroethylene |
| Standards | RoHS 2011/65/CE; REACH 1907/2006; BD EN 331:2015; PED 2014/68/UE |
| Minimum Working Temperature (Deg F) | -4 |
| Minimum Working Temperature (Deg C) | -20 |
| Seat Material | Polytetrafluroethylene |
| Finish Coating | Chrome |
| UNSPSC Code | 40141607 |
| Country of Origin | Italy |
