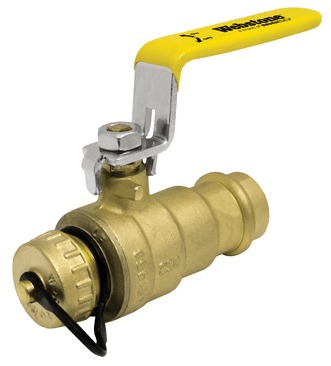

(Nibco Part#: 80312W) 8031W Series - Full Port Forged Brass Ball Valves
1 review
Title
$24.70
Payment Forms We Accept: Visa, Mastercard, Discover, American Express




Material #: 80312W
Brand: Nibco
UPC Code #:
Product Specifications
Industry Standards/Certifications | NSF/ANSI 61, NSF/ANSI 372 |
Type | Ball Valve |
Valve Size | 1/2 x 3/4 |
Connection Type | Press x Hose |
Valve Operator | Lever Handle |
Weight | 0.55 lb |
Maximum Temperature | 250 ºF |
Maximum Operating Pressure | 250 psi |
Stem Seal Material | PTFE |
Seat Material | PTFE |
Stem Material | Brass |
Ball Material | Brass HCP |
Body Material | Brass |
End Material | Brass |
Packing Gland Material | PTFE |
Handle Material | Steel CP |
Handle Nut Material | Brass |
Handle Jacket Material | Vinyl |
Internal Diameter (A) | 0.75 in |
Length (B) | 3 1/16 in |
Height (C) | 2 3/8 in |
Handle Length (D) | 3.5 in |
A
Anonymous The Nibco 80312W Full Port Forged Brass Ball Valve is a high-quality, durable option for managing water flow, with a solid brass construction and reliable PTFE seals. It operates smoothly and is designed to withstand high temperatures and pressures, making it an excellent choice for industrial and residential use.
