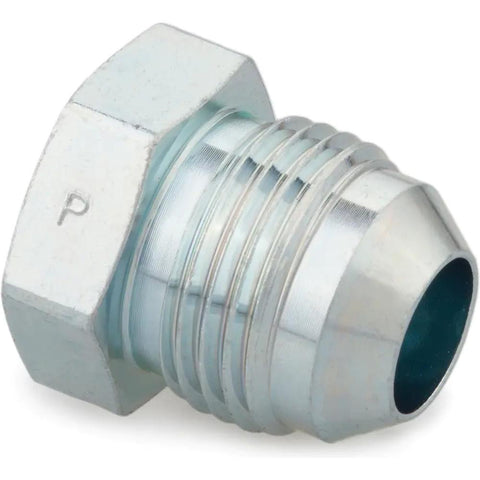

Stainless Steel Flared Tube Plug: 1/2" OD, 37 deg Flared Angle
$45.83
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 52398500
Brand: Parker
Model #: 8 PNTX-SS
Product Specifications
| Fitting Type | Plug |
| Flared Angle | 37 |
| Material | Stainless Steel |
| End Connection | Flare |
| Minimum Working Temperature (Deg C) | -255 |
| Minimum Working Temperature (Deg F) | -425 |
| Maximum Working Temperature (F) | 1200 |
| Standards | ISO 8434-2; SAE 070109; SAE J514 |
| Max Working Pressure Dynamic | 7200 |
| Outside Diameter (Inch) | 1/2 |
| Maximum Working Temprature (Deg C) | 650 |
| Overall Length (Decimal Inch) | 0.9400 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
