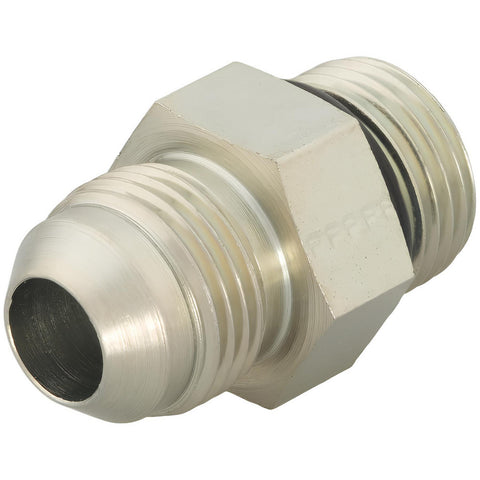

Steel Flared Tube 1/2" OD, 37 deg Flared Angle

$11.28

Payment Forms We Accept: Visa, Mastercard, Discover, American Express


Item #: 09105800
Brand: Parker
Model #: 8-6 F5OX-S

Product Specifications

Flared Angle 37
Material Steel
Thread Standard UNF
End Connection Flare x SAE-ORB
Maximum Working Temperature (F) 500
Standards SAE 070120; ISO 8434-2; SAE J514
Max Working Pressure Dynamic 6000
Outside Diameter (Inch) 1/2
Maximum Working Temprature (Deg C) 260
Overall Length (Decimal Inch) 1.4400
UNSPSC Code 27121707
Country of Origin India
