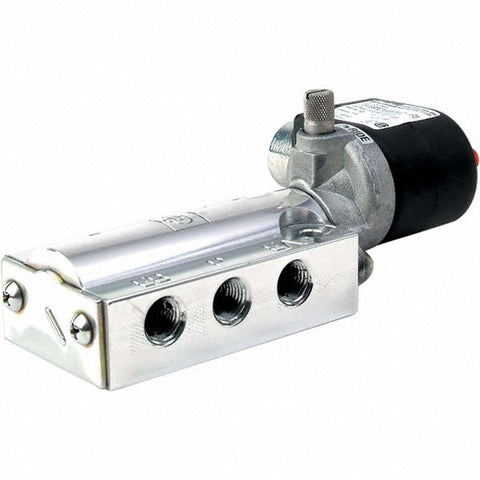

Solenoid Valve: 4-Way & 2-Position, 1/4" Port, NPT
$533.79
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 42125948
Brand: Parker
Model #: 73419AN2NN00N0C111P3
Product Specifications
| Valve Type | Direct-Acting |
| Valve Way & Position | 4-Way & 2-Position |
| Port Size | 1/4 in |
| Valve Unactuated State | Multi Position |
| Thread Standard | NPT |
| Body Material | Aluminum |
| Seal Material | NBR |
| Voltage | 120/60-110/50V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Cv Factor Nc | 1.0000 |
| Orifice Size | 1/4 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Cv Rating | 1.000 |
| Coil Included | Yes |
| Minimum Working Pressure (psi) | 30 |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 167 |
| Maximum Temperature (C) | 167 |
| UNSPSC Code | 40141605 |
