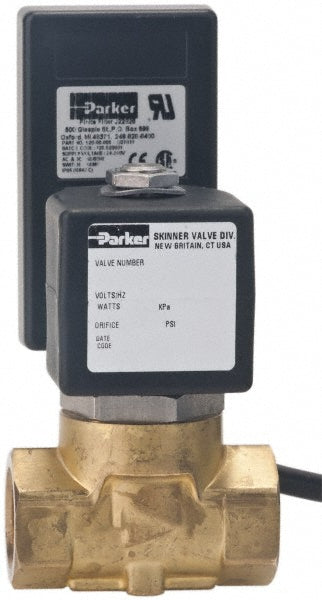

Solenoid Valve: 1/4" Port, FNPT
$660.96
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 34956706
Brand: Parker
Model #: 7321KBY61640N0D1DMP3
Product Specifications
| Valve Type | Solenoid |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | FNPT |
| Body Material | Brass |
| Seal Material | FKM Fluorocarbon |
| Voltage | 120/60-110/50V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 300 |
| Cv Factor Nc | 1.7500 |
| Minimum Working Pressure (psi) | 3 |
| Special Item Information | Class F, UL & CSA, Nema 4X Protection, Selectable Timer Ranges |
| Orifice Sleeve Size | 7/16 |
| Wattage | 10 |
| Maximum Temperature (F) ( - 0 Decimals) | 210 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
