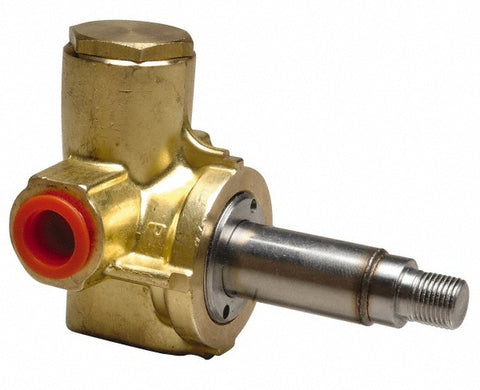

Solenoid Valve: 1" Port, NPT
$455.60
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 36912228
Brand: Parker
Model #: 73218BN64N00
Product Specifications
| Port Size | 1 in |
| Valve Unactuated State | Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 125 |
| Cv Factor Nc | 13.5000 |
| Overall Height (Decimal Inch) | 5.4500 |
| Overall Length (Decimal Inch) | 2.7600 |
| Orifice Size | 1-1/16 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Cv Rating | 13.500 |
| Coil Included | Yes |
| Special Item Information | Requires Integrated Coil for Complete Valve |
| Minimum Operating Pressure Differential | 5 |
| Maximum Temperature (F) ( - 0 Decimals) | 185 |
| Maximum Temperature (C) | 185 |
| UNSPSC Code | 40141605 |
