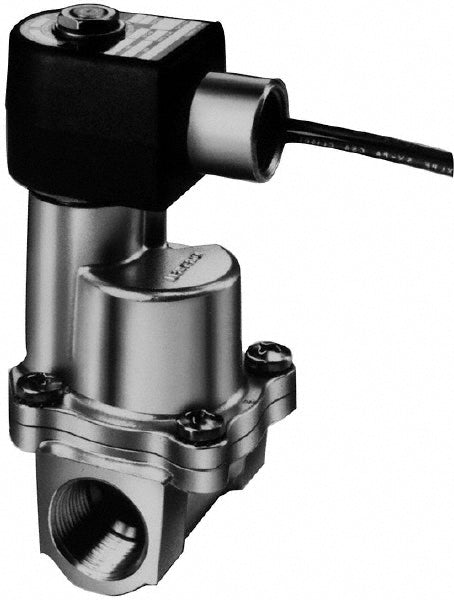

Solenoid Valve: 3/4" Port, NPT
$210.95
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 36912467
Brand: Parker
Model #: 72218BN5VE00
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 3/4 in |
| Valve Unactuated State | Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | Ethylene Propylene Diene Monomer |
| Voltage | 24/60V AC; 120V DC; 240/60-220/50V AC; 120/60-110/50V AC; 24V DC; 12V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 40 |
| Cv Factor Nc | 5.0000 |
| Overall Height (Decimal Inch) | 3.9900 |
| Overall Length (Decimal Inch) | 2.7600 |
| Orifice Size | 3/4 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Applications | Hot Water |
| Minimum Operating Pressure Differential | 0 |
| Maximum Temperature (F) ( - 0 Decimals) | 210 |
| Maximum Temperature (C) | 210 |
| UNSPSC Code | 40141605 |
