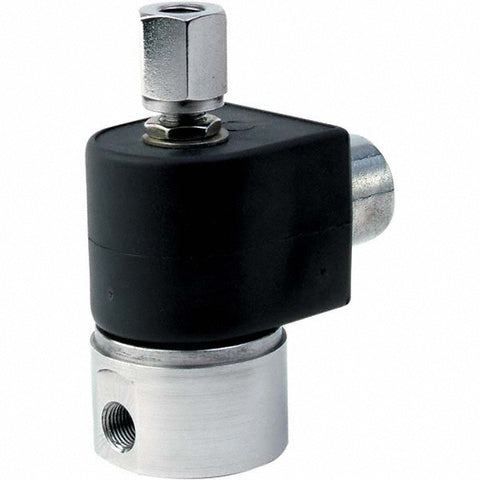

Solenoid Valve: 1/8" Port, NPT
$286.87
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 20101937
Brand: Parker
Model #: 71295SN1KNJ1N0C111C2
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 1/8 in |
| Valve Unactuated State | Normally Open |
| Thread Standard | NPT |
| Body Material | Stainless Steel |
| Seal Material | NBR |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 250 |
| Cv Factor Nc | 0.1500 |
| Orifice Size | 3/32 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 185 |
| Maximum Temperature (C) | 185 |
| UNSPSC Code | 40141605 |
