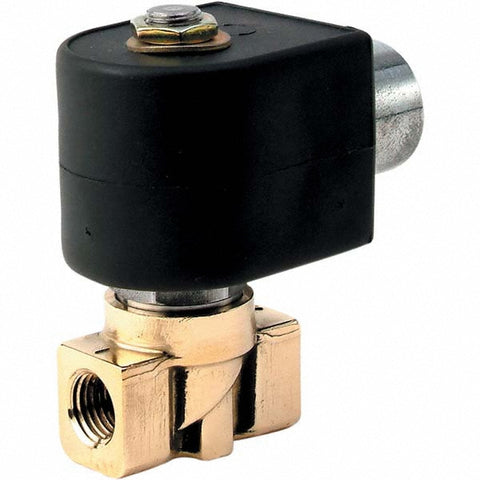

Solenoid Valve: 1/4" Port, NPT
$225.39
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 36094704
Brand: Parker
Model #: 7121KBN2GR00N0C111C2
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | Ruby |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 435 |
| Cv Factor Nc | 0.1100 |
| Orifice Size | 1/16 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Cv Rating | 0.110 |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 210 |
| Maximum Temperature (C) | 210 |
| UNSPSC Code | 40141605 |
