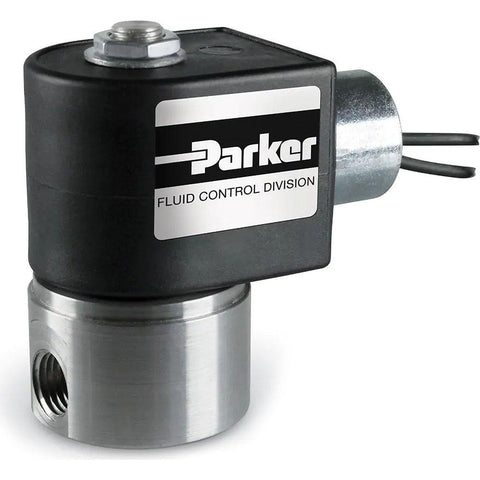

Solenoid Valve: 1/8" Port, NPT
$391.63
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 20101796
Brand: Parker
Model #: 71216SN1BL00N0C111P3
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 1/8 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Stainless Steel |
| Seal Material | Nylon |
| Voltage | 120/60-110/50V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 3000 |
| Cv Factor Nc | 0.0210 |
| Orifice Size | 1/32 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 185 |
| Minimum Temperature (Deg F - 3 Decimals) | 0 |
| Maximum Temperature (C) | 185 |
| UNSPSC Code | 40141605 |
