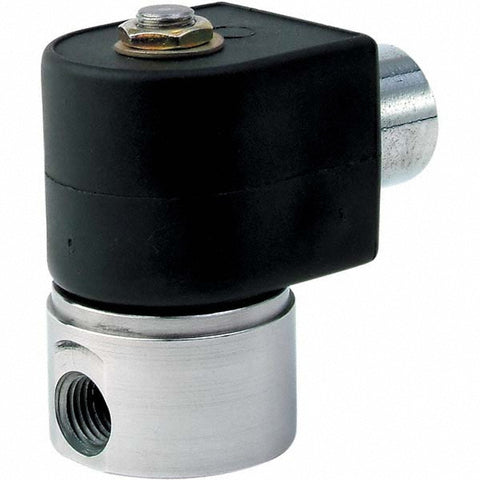

Solenoid Valve: 1/4" Port, NPT
$332.57
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 20101580
Brand: Parker
Model #: 71215SN2KN00N0H111C2
Product Specifications
| Valve Type | Direct-Acting |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Stainless Steel |
| Seal Material | NBR |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 275 |
| Cv Factor Nc | 0.1800 |
| Orifice Size | 3/32 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Coil Included | Yes |
| Special Item Information | Complete Assembly Pressure Vessel & Hazardous Location Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 185 |
| Maximum Temperature (C) | 185 |
| UNSPSC Code | 40141605 |
