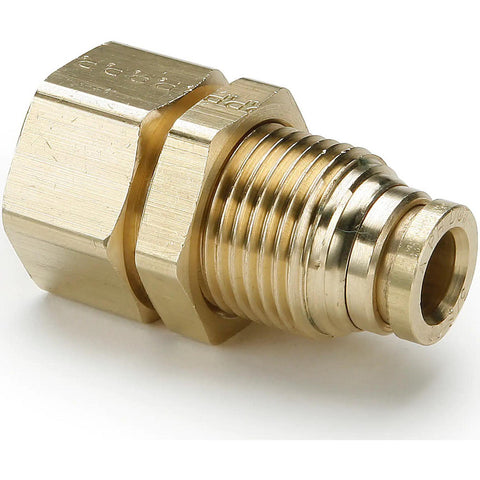

Push-to-Connect Push-to-Connect x Male NPTF Fitting: Bulkhead Connector, 1/2 Thread, NPTF, 1/2" OD
$63.13
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 01468909
Brand: Parker
Model #: 68PTCBH-8-8
Product Specifications
| Fitting Type | Bulkhead Connector |
| Connection Type | Push-to-Connect x Male NPTF |
| Material | Brass |
| Thread Size | 1/2 |
| Color | Gold |
| Tube Outside Diameter | 1/2 |
| Hex Size (Inch) | 1-1/4 |
| Thread Type | NPTF |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | -40 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| Special Item Information | D.O.T. Air Brake Fitting |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| Overall Length (Decimal Inch) | 2.3800 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
