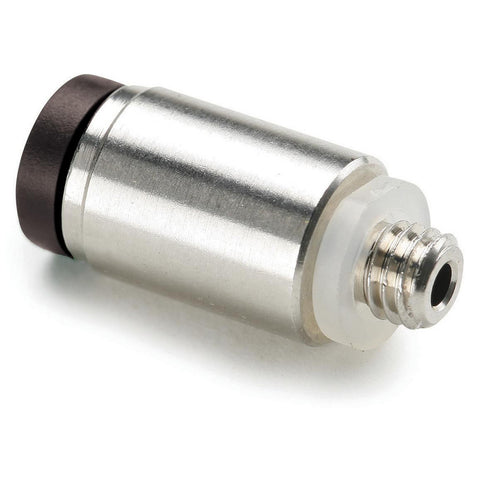

Push-to-Connect Push-to-Connect x Male NPTF Fitting: Round Body Connector, #10-32 Thread, NPTF, 1/4" OD
$20.35
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 13020490
Brand: Parker
Model #: 68PLPR-4-0
Product Specifications
| Fitting Type | Round Body Connector |
| Connection Type | Push-to-Connect x Male NPTF |
| Material | Nickel-Plated Brass |
| Thread Size | #10-32 |
| Color | Silver |
| Tube Outside Diameter | 1/4 |
| Hex Size (Inch) | 3/32 |
| Thread Type | NPTF |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is black flame resistant material that is compliant with the UL94 V-0, flame resistant standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Neoprene |
| Overall Length (Decimal Inch) | 0.9500 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
