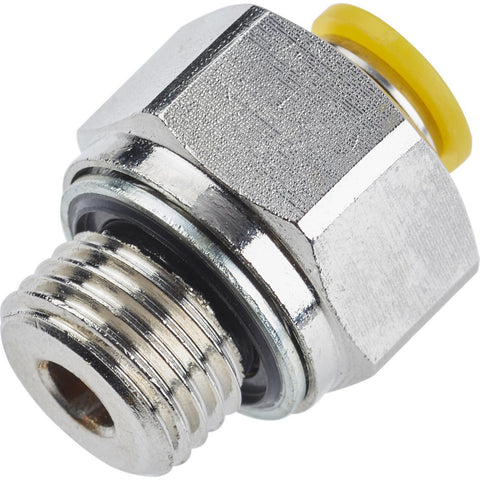

Push-to-Connect Push-to-Connect x Male BSPP Fitting: Male Connector, 1/8 Thread, BSPP, 6 mm OD
$6.18
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 13364245
Brand: Parker
Model #: 68PLP-6M-2G
Product Specifications
| Fitting Type | Male Connector |
| Connection Type | Push-to-Connect x Male BSPP |
| Material | Nickel-Plated Brass |
| Thread Size | 1/8 |
| Color | Silver with Yellow Release Button |
| Tube Outside Diameter (mm) | 6 |
| Hex Size (Inch) | 9/16 |
| Thread Type | BSPP |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | 0 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is Yellow Flame Resistant Material that is Compliant with the UL94 V-0, Flame Resistant Standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8700 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
