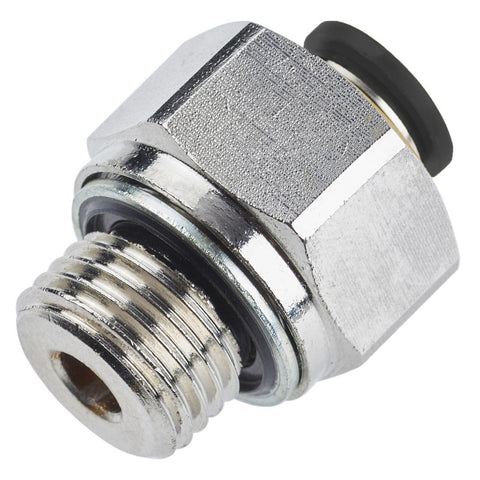

Push-to-Connect Push-to-Connect x Male BSPP Fitting: Male Connector, 3/8 Thread, BSPP, 3/8" OD
$49.20
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 14594352
Brand: Parker
Model #: 68PLP-6-6G
Product Specifications
| Fitting Type | Male Connector |
| Connection Type | Push-to-Connect x Male BSPP |
| Material | Nickel-Plated Brass |
| Thread Size | 3/8 |
| Color | Silver |
| Tube Outside Diameter | 3/8 |
| Hex Size (Inch) | 3/4 |
| Thread Type | BSPP |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | 0 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is black flame resistant material that is compliant with the UL94 V-0, flame resistant standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| Overall Length (Decimal Inch) | 0.8900 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
