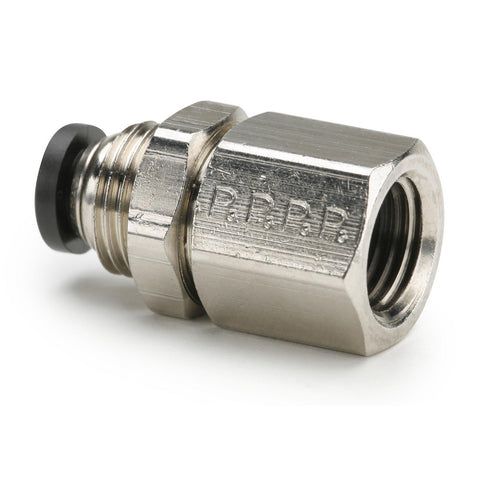

Push-to-Connect Push-to-Connect x Female NPTF Fitting: Bulkhead Connector, 3/8 Thread, NPTF, 3/8" OD
$21.69
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 84426048
Brand: Parker
Model #: 66PLPBH-6-6
Product Specifications
| Fitting Type | Bulkhead Connector |
| Connection Type | Push-to-Connect x Female NPTF |
| Material | Nickel-Plated Brass |
| Thread Size | 3/8 |
| Color | Silver |
| Tube Outside Diameter | 3/8 |
| Hex Size (Inch) | 1 |
| Thread Type | NPTF |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | 0 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is black flame resistant material that is compliant with the UL94 V-0, flame resistant standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| Overall Length (Decimal Inch) | 1.4700 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
