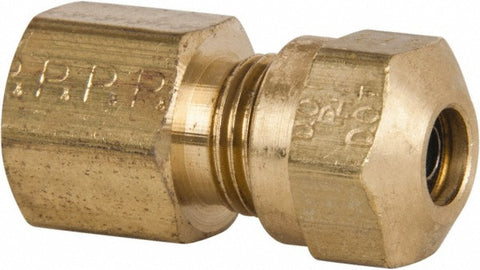

Compression Tube Female Connector: 1/2, 5/8" Tube OD, Compression x FNPT
$43.79
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87872107
Brand: Parker
Model #: 66NTA-10-8
Product Specifications
| Fitting Type | Female Connector |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Size (Inch) | 1/2 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 5/8 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Overall Length (Decimal Inch) | 1.9900 |
| Standards | SAE J1131; SAE J246; D.O.T. FMVSS571.106; SAE 100103 BA |
| Straight Thread Size | 13/16-18 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
