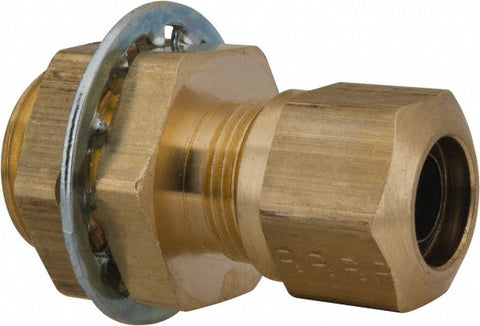

Compression Tube Bulkhead Union: 11/16-20, 1/2" Tube OD, Compression x FNPT
$11.00
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87872081
Brand: Parker
Model #: 66NBH-8-6
Product Specifications
| Fitting Type | Bulkhead Union |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Size (Inch) | 11/16-20 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 1/2 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Overall Length (Decimal Inch) | 1.9400 |
| Standards | SAE J1131; SAE J246; D.O.T. FMVSS571.106 |
| Straight Thread Size | 7/8-14 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
