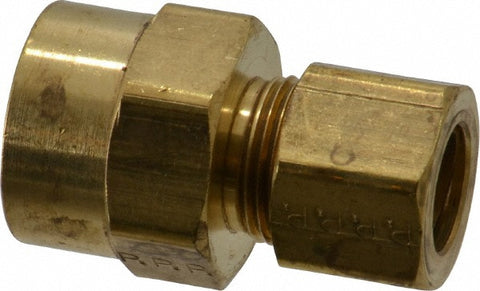

Compression Tube Female Connector: 3/8-18, 1/2" Tube OD, Compression x FNPT
$11.92
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 63031595
Brand: Parker
Model #: 66C-8-6
Product Specifications
| Fitting Type | Female Connector |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Size (Inch) | 3/8-18 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 1/2 |
| Maximum Working Pressure (PSI - 3 Decimals) | 200 |
| Overall Length (Decimal Inch) | 1.5200 |
| Standards | SAE 060103 BA; SAE J512 |
| Straight Thread Size | 11/16-20 |
| For Use With | Water Lines; Air Lines; Lubrication Lines; Fluid Transfer; Automotive Process; Cooling Lines |
| Maximum Temperature (F) ( - 0 Decimals) | 250 |
| Minimum Temperature (Deg F - 3 Decimals) | -65 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
