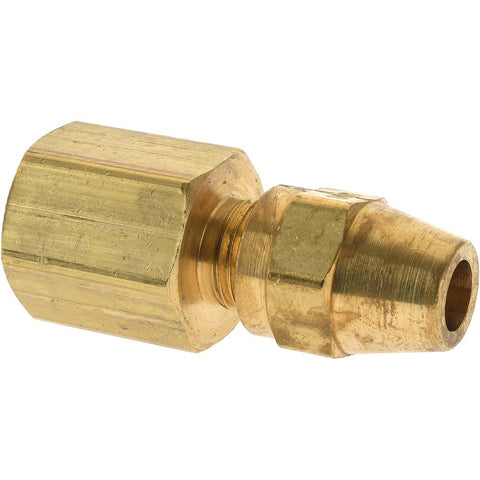

Compression Tube Female Connector: 1/4-18, 1/4" Tube OD, Compression x FNPT
$9.72
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87870929
Brand: Parker
Model #: 66AB-4-4
Product Specifications
| Fitting Type | Female Connector |
| Material | Brass |
| End Connections | Compression x FNPT |
| Thread Size (Inch) | 1/4-18 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 400 |
| Overall Length (Decimal Inch) | 1.6500 |
| Standards | SAE 120103 BA; SAE J246; D.O.T. FMVSS571.106 |
| Straight Thread Size | 7/16-24 |
| For Use With | Copper Air Brake Lines; Coolant Lines; Fuel Lines |
| Maximum Temperature (F) ( - 0 Decimals) | 250 |
| Minimum Temperature (Deg F - 3 Decimals) | -65 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
