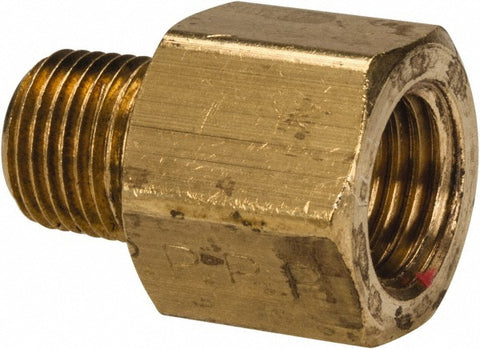

Brass Flared Tube Connector: 1/4" OD, 1/8-27 Thread, 45 deg Flared Angle
$11.84
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62251012
Brand: Parker
Model #: 664FHD-4-2
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 45 |
| Material | Brass |
| Thread Size | 1/8-27 |
| Thread Standard | NPTF |
| End Connection | Flare x MNPTF |
| Minimum Working Temperature (Deg C) | -53.8 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 250 |
| Standards | UL Listed; SAE 010106; SAE J513; SAE J512 |
| Reduced Thread Size | 7/16-20 |
| For Use With | Refrigerant Lines; Adapters; Oil Burners; Propane Lines; Fuels; Natural Gas |
| Special Item Information | Heavy Duty; Fluorocarbon O-Ring |
| Outside Diameter (Inch) | 1/4 |
| Maximum Working Temprature (Deg C) | 121.1 |
| Overall Length (Decimal Inch) | 0.9100 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
