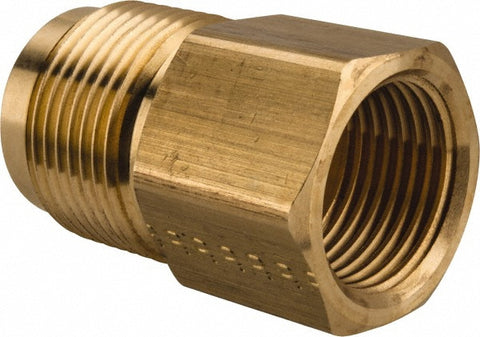

Brass Flared Tube Connector: 3/4 x 5/8" OD, 1-1/16-14 Thread, 45 deg Flared Angle
$28.66
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62250949
Brand: Parker
Model #: 661FHD-12-10
Product Specifications
| Fitting Type | Connector |
| Flared Angle | 45 |
| Material | Brass |
| Thread Size | 1-1/16-14 |
| Thread Standard | UNF |
| End Connection | Flare x Flare |
| Minimum Working Temperature (Deg C) | -53.8 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 250 |
| Standards | UL Listed; SAE 010105; SAE J513; SAE J512 |
| Reduced Thread Size | 7/8-14 |
| For Use With | Refrigerant Lines; Adapters; Oil Burners; Propane Lines; Fuels; Natural Gas |
| Special Item Information | Heavy Duty; Fluorocarbon O-Ring; Thread Protectors |
| Outside Diameter (Inch) | 3/4 x 5/8 |
| Maximum Working Temprature (Deg C) | 121.1 |
| Overall Length (Decimal Inch) | 1.8600 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
