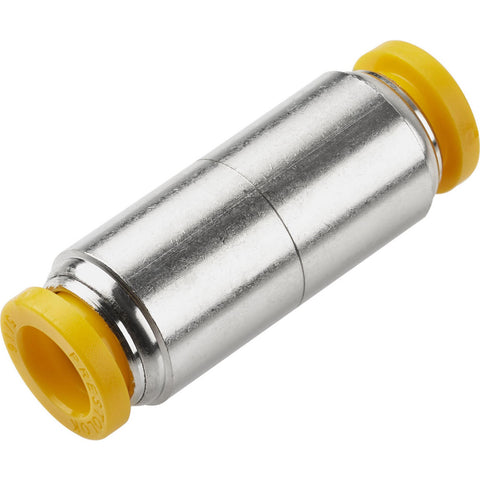

Push-to-Connect Push-to-Connect x Push-to-Connect Fitting: Union, 10 mm OD
$11.37
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 13364112
Brand: Parker
Model #: 62PLP-10M
Product Specifications
| Fitting Type | Union |
| Connection Type | Push-to-Connect x Push-to-Connect |
| Material | Nickel-Plated Brass |
| Color | Silver with Yellow Release Button |
| Tube Outside Diameter (mm) | 10 |
| Standards | SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3 |
| Minimum Work Temperature (F) | 0 |
| Stem Outside Diameter (mm) | 17.46 |
| For Use With | Air Lines; Inert Gases; Oil Lines; Vacuum Lines |
| Special Item Information | Button is Yellow Flame Resistant Material that is Compliant with the UL94 V-0, Flame Resistant Standard |
| Vacuum Rating | 28 in-Hg |
| O Ring Material | Nitrile |
| Maximum Work Temperature (Deg F - 3 Decimals) | 200 |
| Overall Length (mm) | 40.90 |
| Overall Length (Decimal Inch) | 1.6100 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
