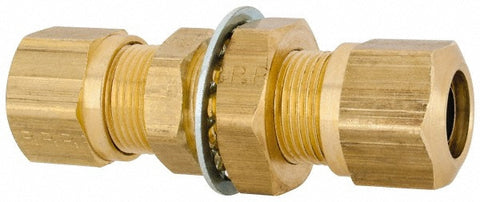

Compression Tube Bulkhead Union: 1/2" Tube OD, Compression x Compression
$32.71
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87871935
Brand: Parker
Model #: 62NBH-8
Product Specifications
| Fitting Type | Bulkhead Union |
| Material | Brass |
| End Connections | Compression x Compression |
| Tube Outside Diameter | 1/2 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Overall Length (Decimal Inch) | 2.9200 |
| Standards | SAE J1131; SAE J246; D.O.T. FMVSS571.106 |
| Straight Thread Size | 11/16-20 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
