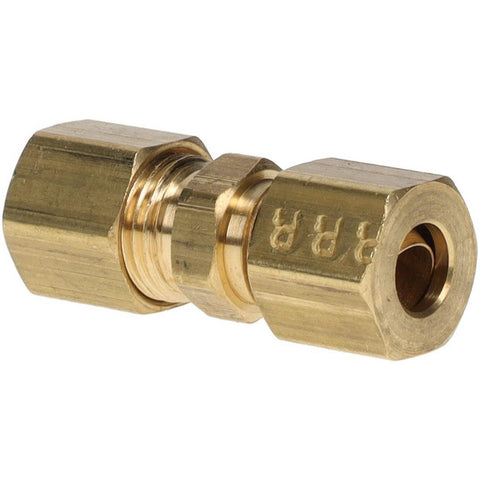

Compression Tube Union: 7/16-24, 1/4" Tube OD, Compression x Compression
$4.22
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 63031181
Brand: Parker
Model #: 62C-4
Product Specifications
| Fitting Type | Union |
| Material | Brass |
| End Connections | Compression x Compression |
| Thread Size (Inch) | 7/16-24 |
| Thread Standard | NPTF |
| Tube Outside Diameter | 1/4 |
| Maximum Working Pressure (PSI - 3 Decimals) | 300 |
| Overall Length (Decimal Inch) | 1.3300 |
| Standards | SAE 060101 BA; SAE J512 |
| Straight Thread Size | 7/16-24 |
| For Use With | Water Lines; Air Lines; Lubrication Lines; Fluid Transfer; Automotive Process; Cooling Lines |
| Maximum Temperature (F) ( - 0 Decimals) | 250 |
| Minimum Temperature (Deg F - 3 Decimals) | -65 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
