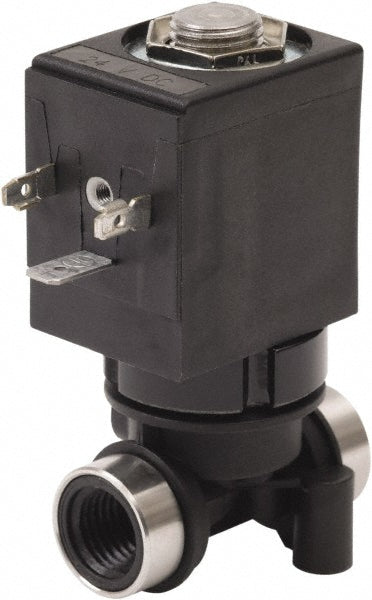

Solenoid Valve: 3-Way & 2-Position, 1/4" Port, NPT
$75.15
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 47242136
Brand: Spartan Scientific
Model #: 6200-040-ABB3C
Product Specifications
| Valve Type | Direct-Acting |
| Valve Way & Position | 3-Way & 2-Position |
| Port Size | 1/4 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Glass Filled Nylon |
| Seal Material | Viton |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 160 |
| Cv Factor Nc | 0.2450 |
| Orifice Size | 2.40 |
| Coil Type | DIN Spade |
| Standards | FDA Approved |
| Cv Rating | 0.240 |
| Coil Included | Yes |
| Special Item Information | No Manual Override |
| Maximum Temperature (F) ( - 0 Decimals) | 50 |
| Minimum Temperature (Deg F - 3 Decimals) | 10 |
| Maximum Temperature (C) | 50 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
