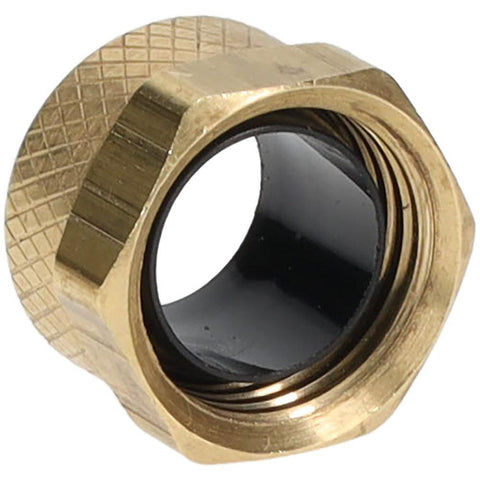

Compression Tube Nut and Sleeve Assembly: 5/16" Tube OD, Compression
$1.19
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 63032825
Brand: Parker
Model #: 61P-5
Product Specifications
| Fitting Type | Nut and Sleeve Assembly |
| Material | Brass |
| End Connections | Compression |
| Tube Outside Diameter | 5/16 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Overall Length (Decimal Inch) | 0.3400 |
| Straight Thread Size | 7/16-24 |
| For Use With | Water Lines; Pneumatic Circuits; Measuring; Coolant Lines |
| Maximum Temperature (F) ( - 0 Decimals) | 150 |
| Minimum Temperature (Deg F - 3 Decimals) | 0 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
