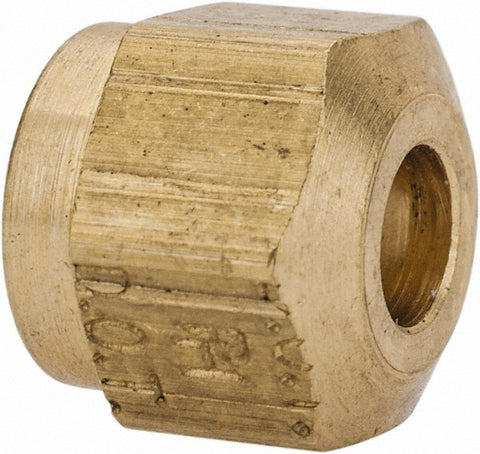

Compression Tube Nut: 3/16" Tube OD, Compression
$1.25
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 87871828
Brand: Parker
Model #: 61NTA-3
Product Specifications
| Fitting Type | Nut |
| Material | Brass |
| End Connections | Compression |
| Tube Outside Diameter | 3/16 |
| Maximum Working Pressure (PSI - 3 Decimals) | 150 |
| Overall Length (Decimal Inch) | 0.4000 |
| Standards | SAE J1131; SAE 100110; SAE J246; D.O.T. FMVSS571.106 |
| Straight Thread Size | 5/16-24 |
| For Use With | Air Ride; Cab Controls; Tire Inflation; Sliders; Primary and Secondary Air Lines; Air Brakes; Air Tanks |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
| Minimum Temperature (Deg F - 3 Decimals) | -40 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
