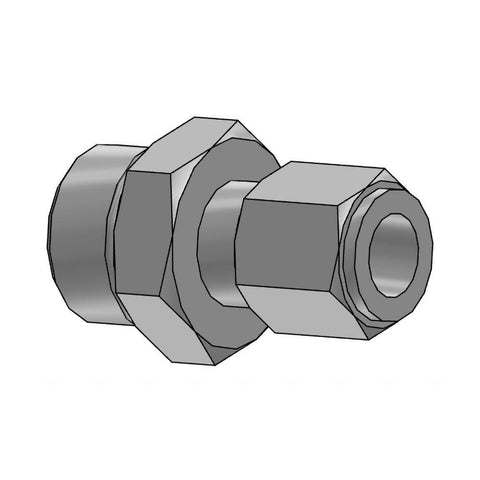

Flareless Bite-Type Tube Straight Thread Connector: 9/16-18 UN & UNF, 3/8" Tube OD, Steel
$15.56
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 09106766
Brand: Parker
Model #: 6 F5BU-S
Product Specifications
| Fitting Type | Straight Thread |
| Outside Diameter (Inch) | 3/8 |
| Material | Steel |
| Thread Size | 9/16-18 |
| Fitting Shape | Straight |
| Flared Angle | 24 degrees |
| Maximum Working Pressure (PSI - 3 Decimals) | 6000 |
| Hex Size | 0.6900 in |
| Thread Type | UN; UNF |
| Size | 6 |
| UNSPSC Code | 27121700 |
| Product Service Code | 4720 |
| Country of Origin | Taiwan |
