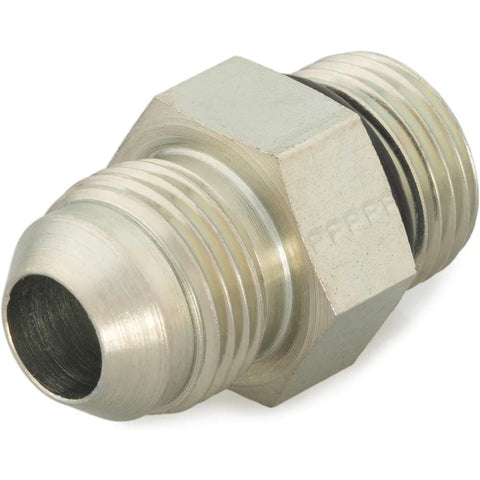

Stainless Steel Flared Tube 3/8" OD, 37 deg Flared Angle
$34.84
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 52398484
Brand: Parker
Model #: 6-8 F5OX-SS
Product Specifications
| Flared Angle | 37 |
| Material | Stainless Steel |
| Thread Standard | UNF |
| End Connection | Flare x SAE-ORB |
| Minimum Working Temperature (Deg C) | -255 |
| Minimum Working Temperature (Deg F) | -425 |
| Maximum Working Temperature (F) | 1200 |
| Standards | SAE 070120; ISO 8434-2; SAE J514 |
| Max Working Pressure Dynamic | 7200 |
| Outside Diameter (Inch) | 3/8 |
| Maximum Working Temprature (Deg C) | 650 |
| Overall Length (Decimal Inch) | 1.3800 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
