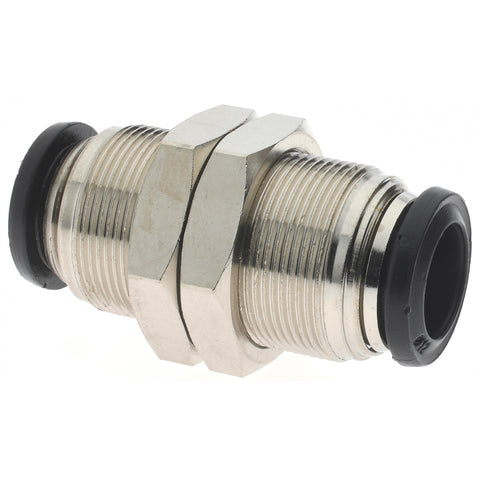

Push-to-Connect Tube x Tube Fitting: Bulkhead Union, M22x1 Thread, 12.00 mm OD
$6.60
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 01489327
Brand: Aignep USA
Model #: 50050N-12
Product Specifications
| Fitting Type | Bulkhead Union |
| Connection Type | Tube x Tube |
| Material | Nickel-Plated Brass |
| Thread Size | M22x1 |
| Color | Silver |
| Tube Outside Diameter (mm) | 12.00 |
| Standards | PED 2014/68/UE; 1907/2006 REACH; 2011/65/CE RoHS; ISO 14743:2004 |
| Minimum Work Temperature (F) | -4 |
| For Use With | General Purpose |
| O Ring Material | Buna-N |
| Maximum Work Temperature (Deg F - 3 Decimals) | 160 |
| Overall Length (mm) | 48.00 |
| Overall Length (Decimal Inch) | 1.8890 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Italy |
