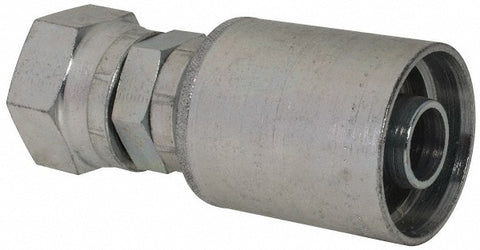

Hydraulic Hose Female Seal-Lok Swivel Short Fitting: 0.75" ID, 12 mm, 1-3/16-12
$115.13
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 06032478
Brand: Eaton
Model #: 4SA12FR12-BG
Product Specifications
| Fitting Type | Female Seal-Lok Swivel Short Fitting |
| Hose Inside Diameter (Decimal Inch) | 0.7500 |
| Hose Size | 12 |
| Material | Steel |
| Thread Type | Female |
| Thread Size (Inch) | 1-3/16-12 |
| Shape | Straight |
| Connection Type | Threaded |
| For Use With | FC736-12 to -32; H485-16; EC810-12, -16; FC500-12 to -24; GH493-12 to FC636-12 to -32; H430R-12 to -32; H464-12 to -32; EC525-12 to -32; FC254-12 to -32; H471-12 to -24; EC600-12, -16 H430-12 to -32; GH506-12 to -32; FC273B-12, -16 |
| Standards | SAE J1176 |
| Series | 4S |
| Shaft Type | Female |
| Hose Outside Diameter (mm) | 19.00 |
| UNSPSC Code | 40141734 |
