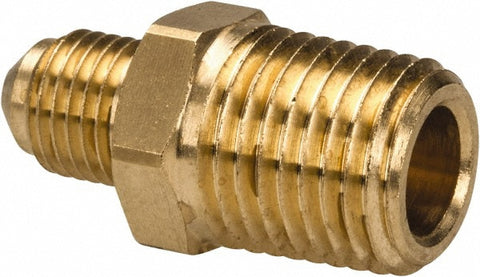

Brass Flared Tube Male Connector: 3/16" OD, 1/4-18 Thread, 45 deg Flared Angle
$6.00
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62250600
Brand: Parker
Model #: 48F-3-4
Product Specifications
| Fitting Type | Male Connector |
| Flared Angle | 45 |
| Material | Brass |
| Thread Size | 1/4-18 |
| Thread Standard | NPTF |
| End Connection | Flare x MNPTF |
| Minimum Working Temperature (Deg C) | -53.8 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 250 |
| Standards | UL Listed; SAE 010102; SAE J513; SAE J512 |
| For Use With | Refrigerant Lines; Adapters; Oil Burners; Propane Lines; Fuels; Natural Gas |
| Special Item Information | Fluorocarbon O-Ring |
| Outside Diameter (Inch) | 3/16 |
| Maximum Working Temprature (Deg C) | 121.1 |
| Overall Length (Decimal Inch) | 1.1700 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
