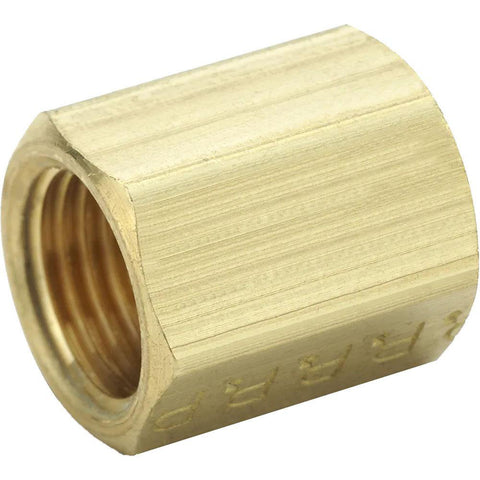

Brass Flared Tube Inverted Union: 1/8" OD, 5/16-28 Thread
$7.07
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62252374
Brand: Parker
Model #: 42IFHD-2
Product Specifications
| Fitting Type | Inverted Union |
| Material | Brass |
| Thread Size | 5/16-28 |
| Thread Standard | UNF |
| End Connection | Flare x Flare |
| Minimum Working Temperature (Deg C) | -53.8 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE J51; UL Listed; SAE 040101 |
| For Use With | Flammable Liquids and Gases; Fuel Lines; Hydraulic Brake; Power Steering; Transmission Cooler Lines |
| Special Item Information | Heavy Duty |
| Outside Diameter (Inch) | 1/8 |
| Maximum Working Temprature (Deg C) | 121.1 |
| Overall Length (Decimal Inch) | 0.6000 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
