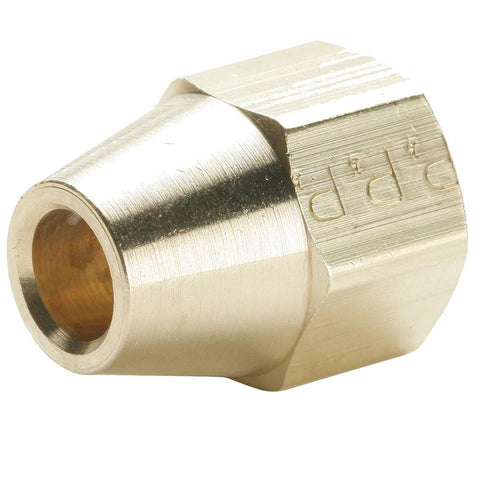

Brass Flared Tube Shorter Nut: 3/8" OD, 5/8-18 Thread, 45 deg Flared Angle
$4.17
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 62249966
Brand: Parker
Model #: 41FX-6
Product Specifications
| Fitting Type | Shorter Nut |
| Flared Angle | 45 |
| Material | Brass |
| Thread Size | 5/8-18 |
| Thread Standard | UNF |
| End Connection | Flare |
| Minimum Working Temperature (Deg C) | -53.8 |
| Minimum Working Temperature (Deg F) | -65 |
| Maximum Working Temperature (F) | 250 |
| Standards | SAE 010110; UL Listed; SAE J513; SAE J512 |
| For Use With | Refrigerant Lines; Adapters; Oil Burners; Propane Lines; Fuels; Natural Gas |
| Special Item Information | Extruded; Fluorocarbon O-Ring |
| Outside Diameter (Inch) | 3/8 |
| Maximum Working Temprature (Deg C) | 121.1 |
| Overall Length (Decimal Inch) | 0.9100 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
