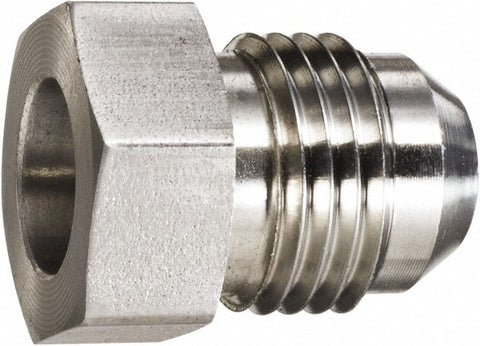

Stainless Steel Flared Tube OD Socket: 3/4" OD, 1-1/16-12 Thread, 37 deg Flared Angle
$148.21
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 37476454
Brand: Made in USA
Model #: 403-12
Product Specifications
| Fitting Type | OD Socket |
| Flared Angle | 37 |
| Material | Stainless Steel |
| Thread Size | 1-1/16-12 |
| End Connection | Flare x Swivel x Flare |
| Material Grade | 316 |
| Max Working Pressure Dynamic | 4500 |
| Outside Diameter (Inch) | 3/4 |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 1.2400 |
| UNSPSC Code | 27121707 |
| Country of Origin | UNITED STATES |
