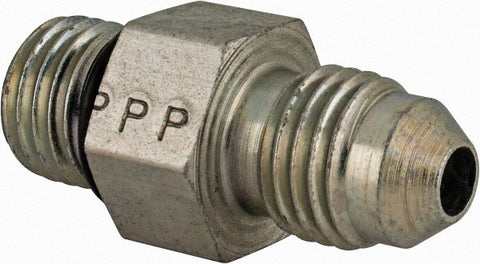

Steel Flared Tube 1/4" OD, 37 deg Flared Angle
$7.50
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 09105701
Brand: Parker
Model #: 4 F5OX-S
Product Specifications
| Flared Angle | 37 |
| Material | Steel |
| Thread Standard | UNF |
| End Connection | Flare x SAE-ORB |
| Maximum Working Temperature (F) | 500 |
| Standards | SAE 070120; ISO 8434-2; SAE J514 |
| Max Working Pressure Dynamic | 7500 |
| Outside Diameter (Inch) | 1/4 |
| Maximum Working Temprature (Deg C) | 260 |
| Overall Length (Decimal Inch) | 1.2300 |
| UNSPSC Code | 27121707 |
| Country of Origin | India |
