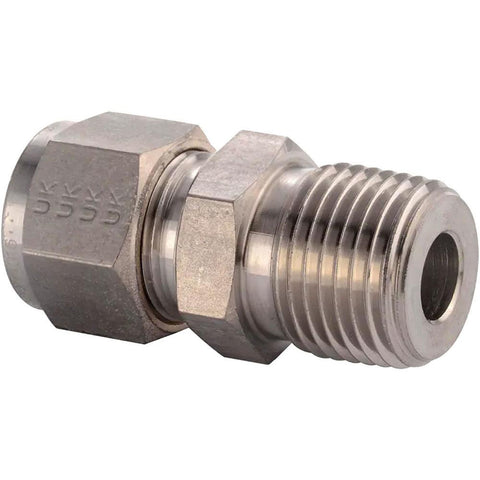

Compression Tube Connector: 1/4-18, 3/16" Tube OD, Compression x MNPT
$29.44
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 32151813
Brand: Parker
Model #: 3MSC4N-316
Product Specifications
| Fitting Type | Connector |
| Material | Stainless Steel |
| End Connections | Compression x MNPT |
| Thread Size (Inch) | 1/4-18 |
| Thread Standard | NPT |
| Tube Outside Diameter | 3/16 |
| Maximum Working Pressure (PSI - 3 Decimals) | 10300 |
| Overall Length (Decimal Inch) | 1.4300 |
| Maximum Temperature (F) ( - 0 Decimals) | 1200 |
| Minimum Temperature (Deg F - 3 Decimals) | -425 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | UNITED STATES |
