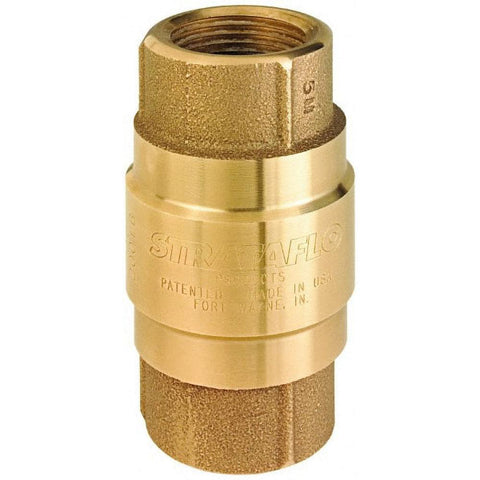

Check Valves: Design: In-Line; Valve Type: Check
$181.79
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 45762978
Brand: Strataflo
Model #: 385-125
Product Specifications
| Design | In-Line |
| Valve Type | Check |
| Connection Type | FNPT x FNPT |
| End Connection | FNPT x FNPT |
| Mounting Orientation | Vertical; Horizontal |
| Body Material | Brass |
| Crack Pressure (psi) | 1 |
| Pipe Size | 1-1/4 in |
| Piston Material | Stainless Steel |
| Seal Material | Ethylene Propylene Diene Monomer |
| Color | Gold |
| Maximum Working Pressure | 400 psi |
| Lead Free | No |
| Epa Watersense Certified | No |
| Minimum PSI | 1.00 |
| Width (Decimal Inch - 4 Decimals) | 2.4100 |
| Maximum Temperature (F) ( - 0 Decimals) | 225.000 |
| Minimum Temperature (Deg F - 3 Decimals) | -20.000 |
| Overall Length (Decimal Inch) | 4.5700 |
| Spring Material | Stainless Steel |
| Pipe Size | 1-1/4 |
| UNSPSC Code | 40141622 |
| Country of Origin | UNITED STATES |
