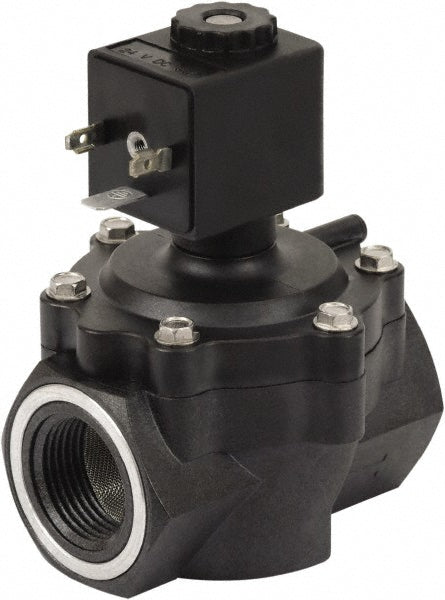

Solenoid Valve: 2-Way & 2-Position, 1" Port
No reviews
Title
$69.58
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 47241773
Brand: Spartan Scientific
Model #: 3827-010-8223C-06
Product Specifications
| Valve Type | Two-Way; Two-Position |
| Port Size | 1 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Composite |
| Seal Material | Viton |
| Voltage | 24V DC |
| Maximum Working Pressure (PSI - 3 Decimals) | 120 |
| Cv Factor Nc | 14.0000 |
| Orifice Size | 1-1/8 |
| Coil Type | DIN Spade with Connector |
| Minimum Working Pressure (psi) | 10 |
| Special Item Information | Materials in Contact with Media: Brass; No Manual Override |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
