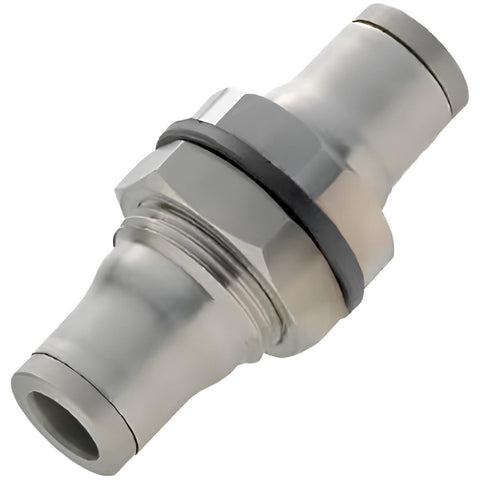

Push-to-Connect Tube x Tube Fitting: Bulkhead Union, 3/8" OD
$225.58
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 48616445
Brand: Legris
Model #: 3816 60 00
Product Specifications
| Fitting Type | Bulkhead Union |
| Connection Type | Tube x Tube |
| Material | Stainless Steel |
| Tube Outside Diameter | 3/8 |
| Standards | 2011/65/EC; DI:97/23/EC (PED); UL94 V-0; RG:1907/2006 (REACH); RG:193; DI:2002/95/EC (RoHS); RG:21CFR (FDA); DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -4 |
| For Use With | Chemical Transfer; Food Processing; Petrochemicals; Paper Industry; Pharmaceutical; Medical Equipment |
| Vacuum Rating | 1 bar |
| O Ring Material | FKM |
| Maximum Work Temperature (Deg F - 3 Decimals) | 248 |
| Overall Length (Decimal Inch) | 1.9500 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | VARIOUS |
