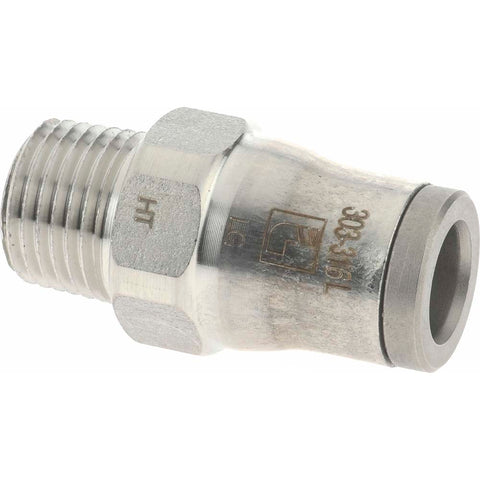

Push-to-Connect Tube x MNPT x Tube x Male Fitting: Connector, NPT, 1/4" OD
$96.28
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 48615181
Brand: Legris
Model #: 3805 56 11
Product Specifications
| Fitting Type | Connector |
| Connection Type | Tube x MNPT x Tube x Male |
| Material | Stainless Steel |
| Tube Outside Diameter | 1/4 |
| Thread Type | NPT |
| Standards | 2011/65/EC; DI:97/23/EC (PED); UL94 V-0; RG:1907/2006 (REACH); RG:193; DI:2002/95/EC (RoHS); RG:21CFR (FDA); DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -4 |
| For Use With | Chemical Transfer; Food Processing; Petrochemicals; Paper Industry; Pharmaceutical; Medical Equipment |
| Vacuum Rating | 1 bar |
| O Ring Material | FKM |
| Maximum Work Temperature (Deg F - 3 Decimals) | 248 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | VARIOUS |
