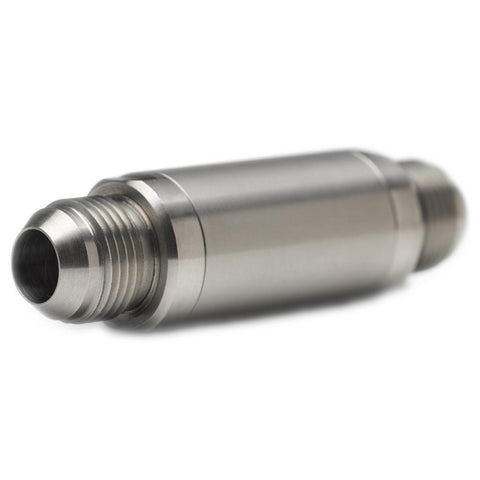

Check Valves: Design: In-Line; Valve Type: Check
$90.18
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 41897182
Brand: Strataflo
Model #: 3695RB-J6M
Product Specifications
| Design | In-Line |
| Valve Type | Check |
| Connection Type | JIC |
| End Connection | Male 37 Degree Flare |
| Mounting Orientation | Vertical; Horizontal |
| Body Material | 316 Stainless Steel |
| Crack Pressure (psi) | 1 |
| Pipe Size | 3/8 |
| Piston Material | Stainless Steel |
| Seal Material | Viton |
| Color | Silver |
| Maximum Working Pressure | 3000.000 psi |
| Lead Free | Yes |
| Epa Watersense Certified | No |
| Minimum PSI | 1.00 |
| Width (Decimal Inch - 4 Decimals) | 1.1200 |
| Maximum Temperature (F) ( - 0 Decimals) | 400.000 |
| Minimum Temperature (Deg F - 3 Decimals) | -15.000 |
| Overall Length (Decimal Inch) | 3.5500 |
| Spring Material | 316 Stainless Steel |
| Pipe Size | 3/8 |
| UNSPSC Code | 40141622 |
| Country of Origin | UNITED STATES |
