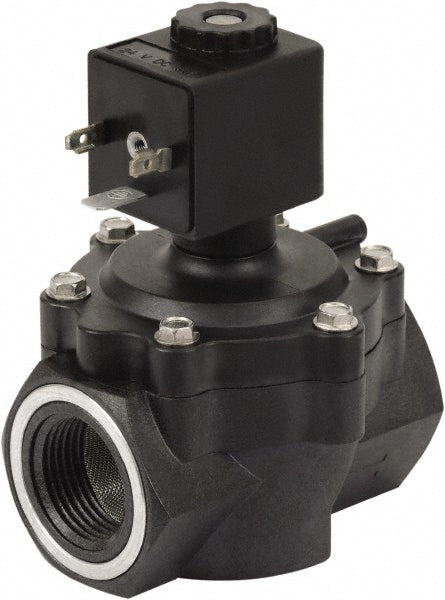

Solenoid Valve: 2-Way & 2-Position, 1" Port, NPT
$158.39
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 47241815
Brand: Spartan Scientific
Model #: 3685-020-9227B
Product Specifications
| Valve Type | Solenoid |
| Valve Way & Position | 2-Way & 2-Position |
| Port Size | 1 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Composite |
| Seal Material | Nitrile |
| Voltage | 120V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 120 |
| Cv Factor Nc | 14.0000 |
| Orifice Size | 1-1/8 |
| Coil Type | Flying Lead |
| Cv Rating | 14.000 |
| Coil Included | Yes |
| Minimum Working Pressure (psi) | 10 |
| Special Item Information | Materials in Contact with Media: Stainless Steel; No Manual Override |
| Maximum Temperature (F) ( - 0 Decimals) | 50 |
| Minimum Temperature (Deg F - 3 Decimals) | 10 |
| Maximum Temperature (C) | 50 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
