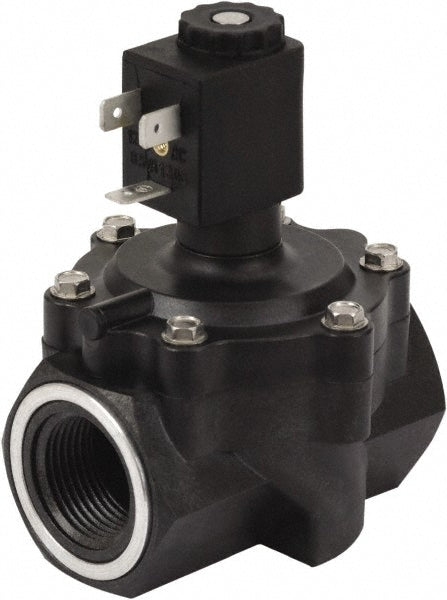

Solenoid Valve: 2-Way & 2-Position, 1" Port
No reviews
Title
$174.81
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 47244223
Brand: Spartan Scientific
Model #: 3680-020-8227A
Product Specifications
| Valve Type | Two-Way; Two-Position |
| Port Size | 1 in |
| Valve Unactuated State | Normally Closed |
| Body Material | Glass Filled Polyester |
| Seal Material | NBR |
| Voltage | 120V AC |
| Maximum Working Pressure (PSI - 3 Decimals) | 120 |
| Cv Factor Nc | 14.0000 |
| Orifice Size | 1-1/8 |
| Coil Type | DIN Spade |
| Minimum Working Pressure (psi) | 10 |
| Special Item Information | No Manual Override; Materials in Contact with Media: Brass/Stainless Steel/Ultem 2100 |
| UNSPSC Code | 40141605 |
| Country of Origin | UNITED STATES |
