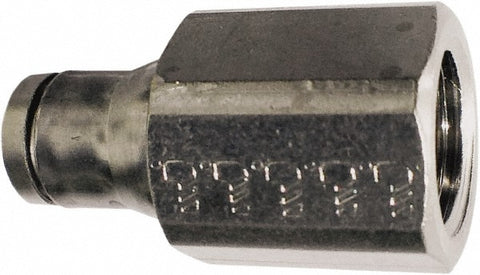

Push-to-Connect Tube x Female x Tube x Female BSPP Fitting: Connector, BSPP, 6.00 mm OD
$18.56
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 68967827
Brand: Legris
Model #: 3614 06 13
Product Specifications
| Fitting Type | Connector |
| Connection Type | Tube x Female x Tube x Female BSPP |
| Material | Nickel-Plated Brass |
| Tube Outside Diameter (mm) | 6.00 |
| Thread Type | BSPP |
| Standards | 2011/65/EC; DI:97/23/EC (PED); UL94 V-0; RG:1907/2006 (REACH); RG:193; DI:2002/95/EC (RoHS); RG:21CFR (FDA); DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -4 |
| For Use With | Printing; Misting; Food Processing; Welding Robots; Coffee Machines; In-Plant Automotive; Medical Equipment |
| Vacuum Rating | 1 bar |
| O Ring Material | FKM |
| Maximum Work Temperature (Deg F - 3 Decimals) | 302 |
| Overall Length (mm) | 31.50 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | VARIOUS |
