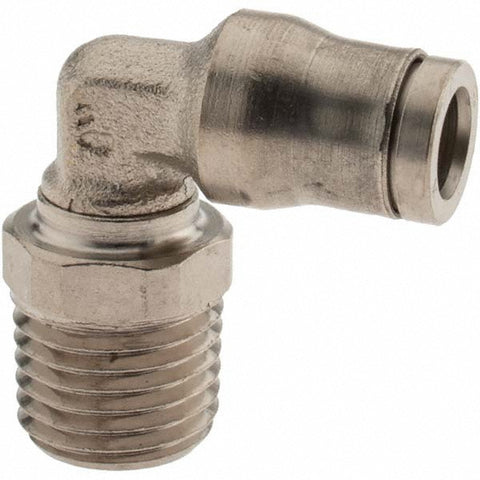

Push-to-Connect Tube x MNPT x Tube x Male Fitting: Elbow, NPT, 1/4" OD
$74.09
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 53594800
Brand: Parker
Model #: 36095614
Product Specifications
| Fitting Type | Elbow |
| Connection Type | Tube x MNPT x Tube x Male |
| Material | Nickel-Plated Brass |
| Tube Outside Diameter | 1/4 |
| Thread Type | NPT |
| Standards | 2011/65/EC; USDA NSF H1; DI:97/23/EC (PED); RG:1907/2006 (REACH); DI:2002/95/EC (RoHS); RG:1935/2004/EC; RG:21CFR (FDA); UL94 V-0:Seal; DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -13 |
| For Use With | Printing; Misting; Food Processing; Welding Robots; Coffee Machines; In-Plant Automotive; Medical Equipment |
| O Ring Material | FKM |
| Maximum Work Temperature (Deg F - 3 Decimals) | 302 |
| Overall Length (Decimal Inch) | 1.1800 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Canada |
