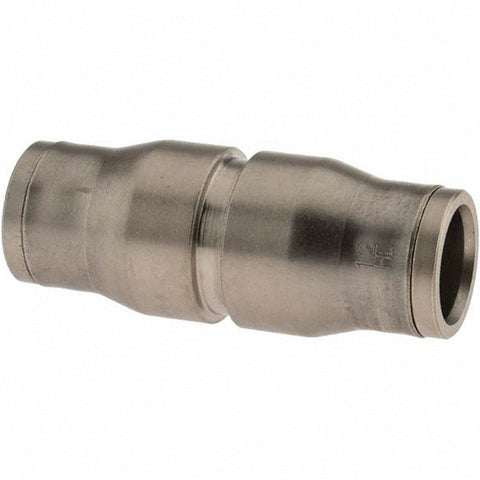

Push-to-Connect Tube x Tube Fitting: Union, 12.00 mm OD
$153.76
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Item #: 53594982
Brand: Parker
Model #: 36061200
Product Specifications
| Fitting Type | Union |
| Connection Type | Tube x Tube |
| Material | Nickel-Plated Brass |
| Tube Outside Diameter (mm) | 12.00 |
| Standards | 2011/65/EC; USDA NSF H1; DI:97/23/EC (PED); RG:1907/2006 (REACH); DI:2002/95/EC (RoHS); RG:1935/2004/EC; RG:21CFR (FDA); UL94 V-0:Seal; DI:94/9/EC (ATEX); ISO 14743 |
| Minimum Work Temperature (F) | -13 |
| For Use With | Printing; Misting; Food Processing; Welding Robots; Coffee Machines; In-Plant Automotive; Medical Equipment |
| O Ring Material | FKM |
| Maximum Work Temperature (Deg F - 3 Decimals) | 302 |
| Overall Length (mm) | 50.00 |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | Canada |
